High-efficiency EC external rotor motors cut energy use while offering flexible installation and smart connectivity.

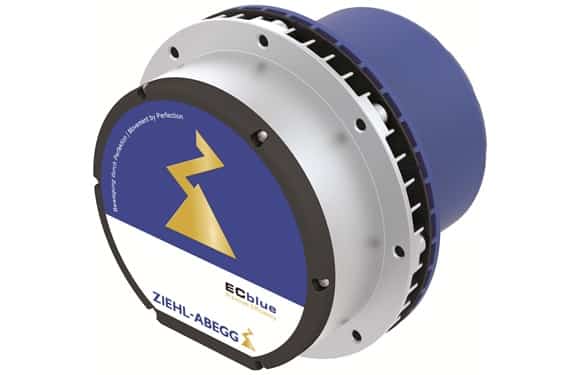

ZIEHL-ABEGG, a global leader in ventilation, control, and drive technology, is proud to highlight its EC external rotor motors as a high-efficiency drive solution engineered to help manufacturers and operators reduce energy consumption, simplify integration, and meet growing demand for environmentally responsible technology. Built around an electronically commutated external rotor motor with an integrated ECblue controller, the solution combines motor and control functionality in one compact package, helping reduce component count and streamline system design and installation.
Designed to meet the requirements of efficiency class IE5 in accordance with IEC 60034-30-2, the EC external rotor motor delivers ultra-high efficiency for lower operating costs and reduced power consumption. With efficiency levels that surpass the minimum IE4 thresholds, the motor provides a future-ready solution that helps projects stay ahead of tightening efficiency standards. This high-efficiency ECblue motor technology reduces energy use across the operating range while helping customers shrink the environmental footprint of ventilation systems and improve total cost of ownership.
With a power range from about 0.09 to 6 kW and wide voltage ranges of 1~100–177 V, 1~200–277 V, 3~200–240 V, and ~380–480 V at 50/60 Hz, the motor platform supports broad application coverage and flexible use across diverse installation environments and global markets. That range helps OEMs simplify specification, inventory management, and platform standardization while reducing the need for multiple region-specific motor variants.
To support reliable operation, the EC external rotor motor features integrated motor protection and active temperature management, helping protect against overload and thermal stress while extending service life and reducing the risk of unplanned downtime. Compliance with EN IEC 61000-6-3 for interference emission and EN IEC 61000-6-2 for interference immunity helps systems meet EMC requirements and maintain stable operation in demanding environments. Degree of protection options including IP20, IP54, IP55 and IP55+ give customers flexibility to match the motor to different installation conditions, from more protected environments to applications exposed to dust and moisture.
The motors are designed to simplify adoption and integration. UL approval, provided as standard on many variants, helps ease use in safety-critical applications while reducing certification effort and supporting faster project timelines. Integrated connectivity options support integration into modern control and building automation systems for monitoring, control, and optimization. Optional Bluetooth connectivity enables wireless commissioning and diagnostics to reduce setup time and simplify field service. A ZAcode interface, along with a flexible customer interface and easy expansion capability, gives users additional freedom to tailor the motor platform to application-specific control needs and evolving system requirements.
ZIEHL-ABEGG further strengthens the value of the platform through a compact and modular design that saves installation space and gives designers greater freedom to optimize fan and equipment layouts. Easy installation and start-up help shorten commissioning time and reduce labor requirements, while the ability to combine the motor with ZIEHL-ABEGG axial and radial impellers creates a coordinated, high-efficiency package in which motor and impeller are matched for performance, noise characteristics, and energy use.
About ZIEHL-ABEGG:
ZIEHL-ABEGG is a global leader in ventilation, control, and drive technology, delivering high-efficiency solutions for HVAC, data centers, industrial applications, and elevator systems worldwide. ZIEHL-ABEGG pioneered modern fan drives in the 1950s with the development of external rotor motors, which remain a state-of-the-art standard in the industry. ZIEHL-ABEGG electric motors and drive systems power applications ranging from elevators to medical equipment, underscoring the company’s reputation for reliability and engineering excellence. With a strong focus on innovation, product–market fit, and rapid availability, ZIEHL-ABEGG continues to expand, supporting customers with competitive, energy-efficient solutions that help make their businesses more successful every day.
